JF C120 AT S5
"Wide, row-independent header harvester for maize/sorghum and broadcast forage with 24 chop sizes."
Delivery
SLA
4-12 weeks
Days
Service
Life
24
Mo. Warranty
ABOUT THIS MACHINE
Built to Last. Ready for the Field.

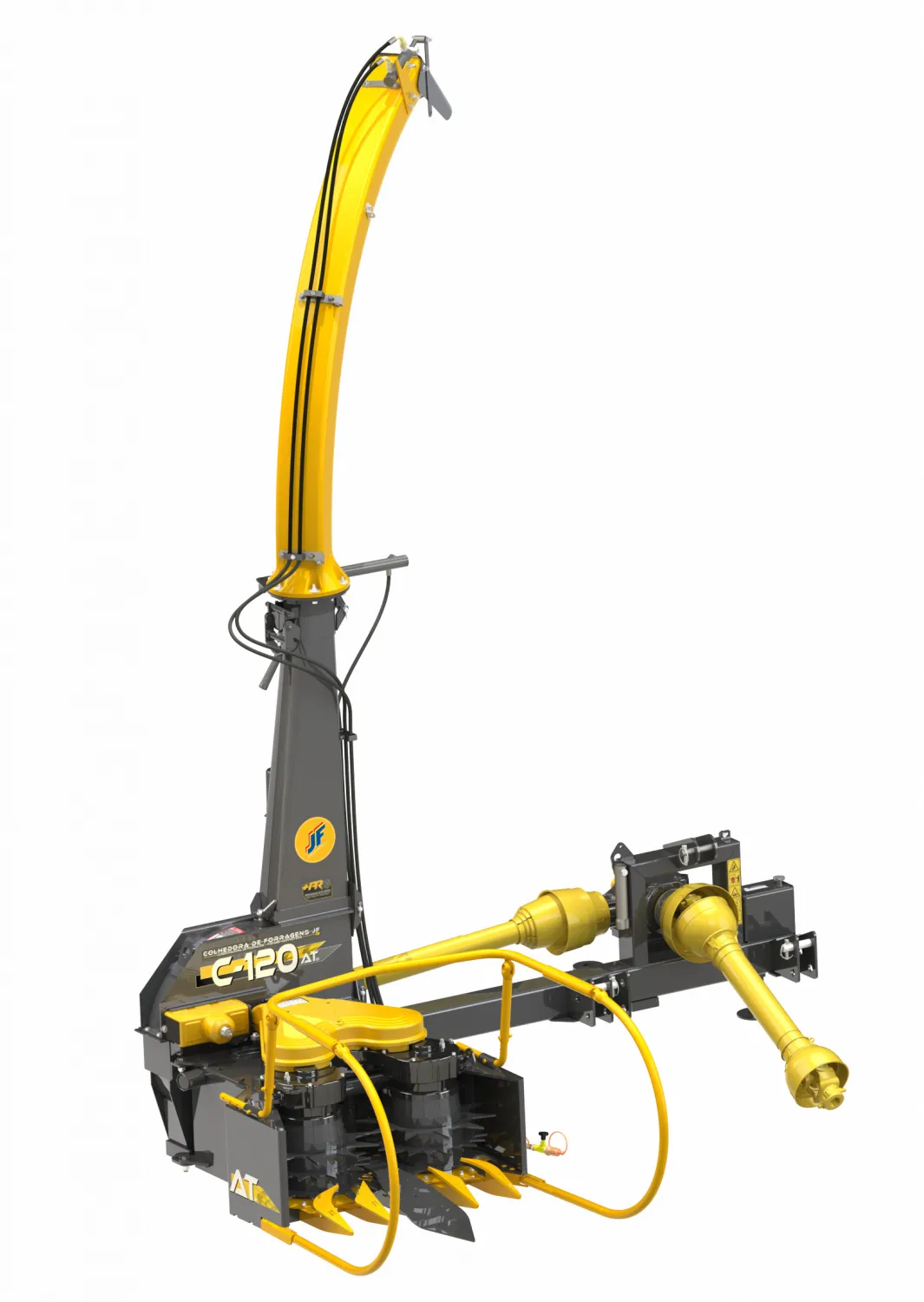

JF C120 AT S5 is a versatile harvester for maize, sorghum, sugarcane and tropical/winter forages. Heavy-duty gearboxes, front drums and aligners for constant crop flow; 24 chop sizes; central lubrication; built-in sharpener.
Main Features

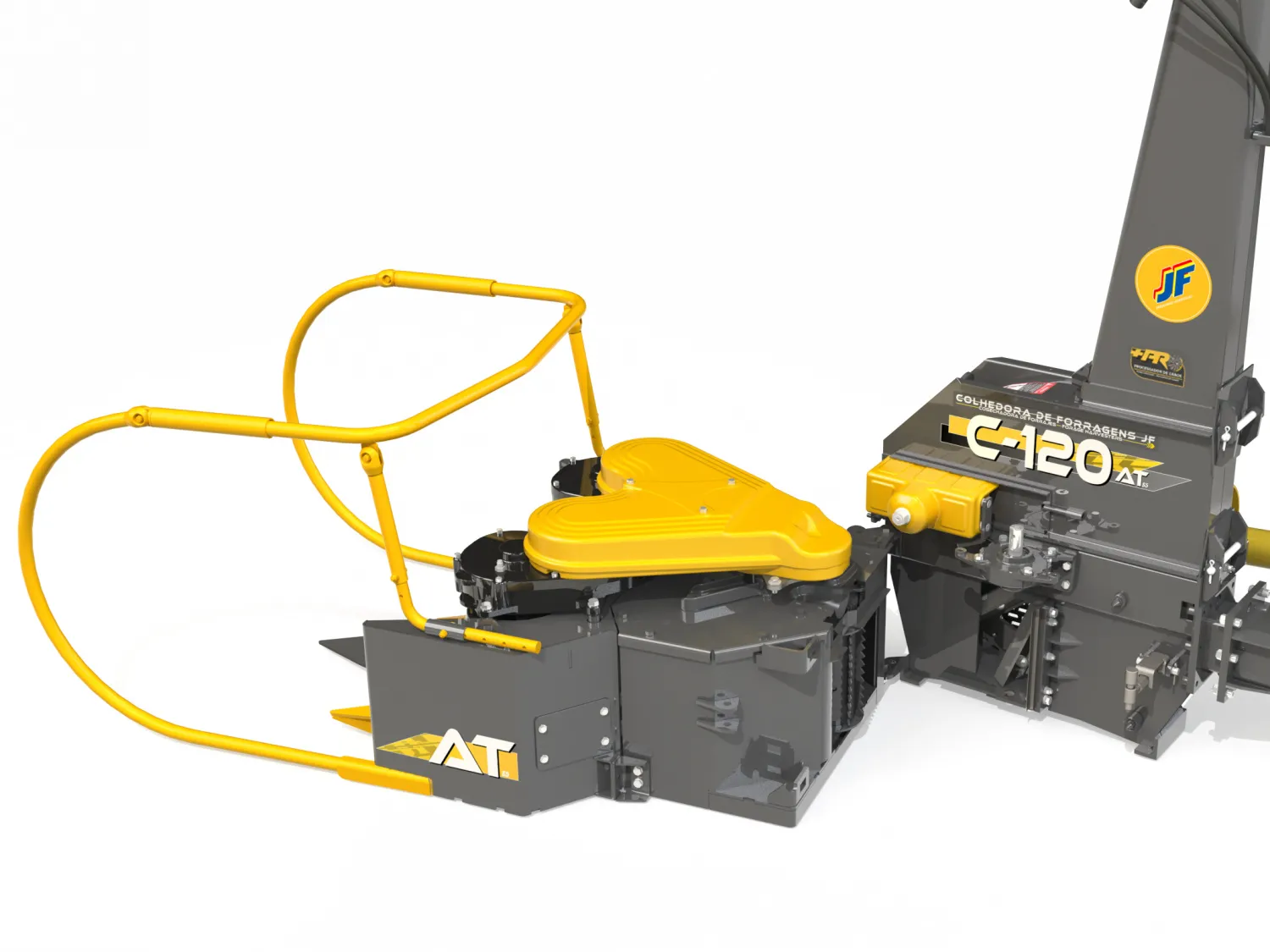

Row-independent header
Wider header that works with row spacing and broadcast seeding.
Front drum feeding
Aligners and drums designed for constant crop flow and lower stress.
On
THE Farm
Machine Gallery
See the machine from different angles.
Machine Details
Technical Information
Total Capacity
Up to 35 ton/h
Mechanical Cut
24 (3 to 36 mm)
Blade Configuration
12
Drum Count
4
Rotor Tech
1
Power Unit
Tractor PTO
PTO Required
65 to 95 hp
PTO RPM
540 RPM
Transmission
gearbox / cardan
Machine Weight
865 kg
Versatility
Handles maize, sorghum, sugar cane and broadcast forages
Transmission
Heavy-duty gearbox/card an
Chop sizes
24 sizes (3–36 mm)
