JF C120 S3 (Gearbox with Ratchet System)
"Top-selling precision forage harvester, high production with patented C-technology blades."
Delivery
SLA
4-12 weeks
Days
Service
Life
24
Mo. Warranty
ABOUT THIS MACHINE
Built to Last. Ready for the Field.
JF C-120 S3 is world’s top selling precision forage harvester renowned for production capacity, chop quality and kernel cracking action via patented C-technology blades — built for consistent silage and high throughput.
Main Features
Precision chopping
Patented blades engineered for consistent chop and kernel processing.
Multiple transmission options
Available with gearbox/ratchet or belt drive to suit tractor configurations.

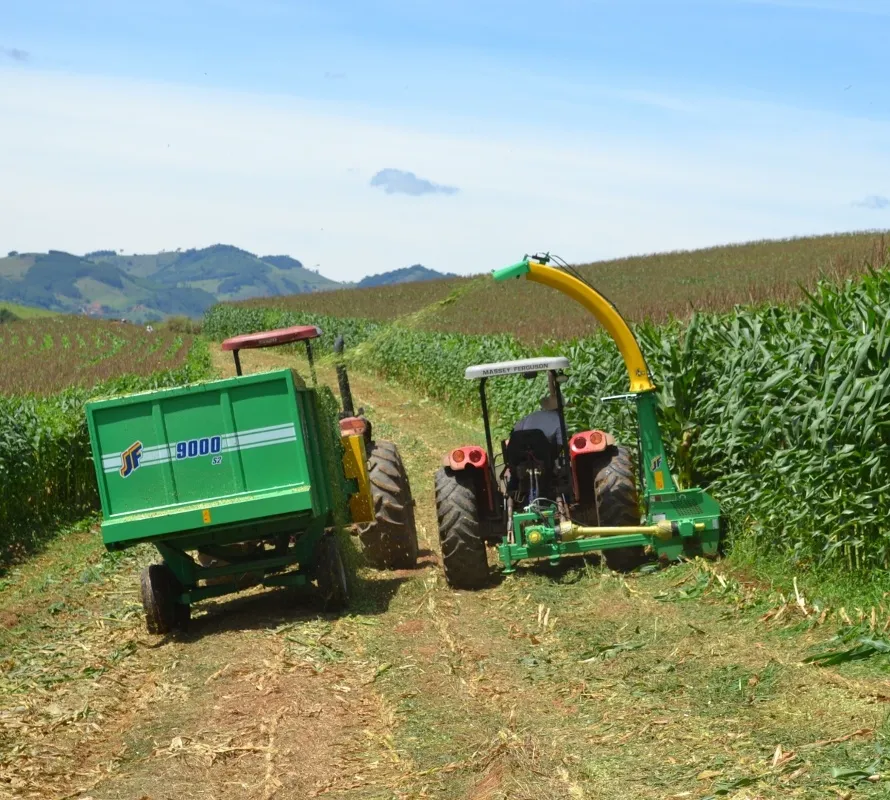

On
THE Farm

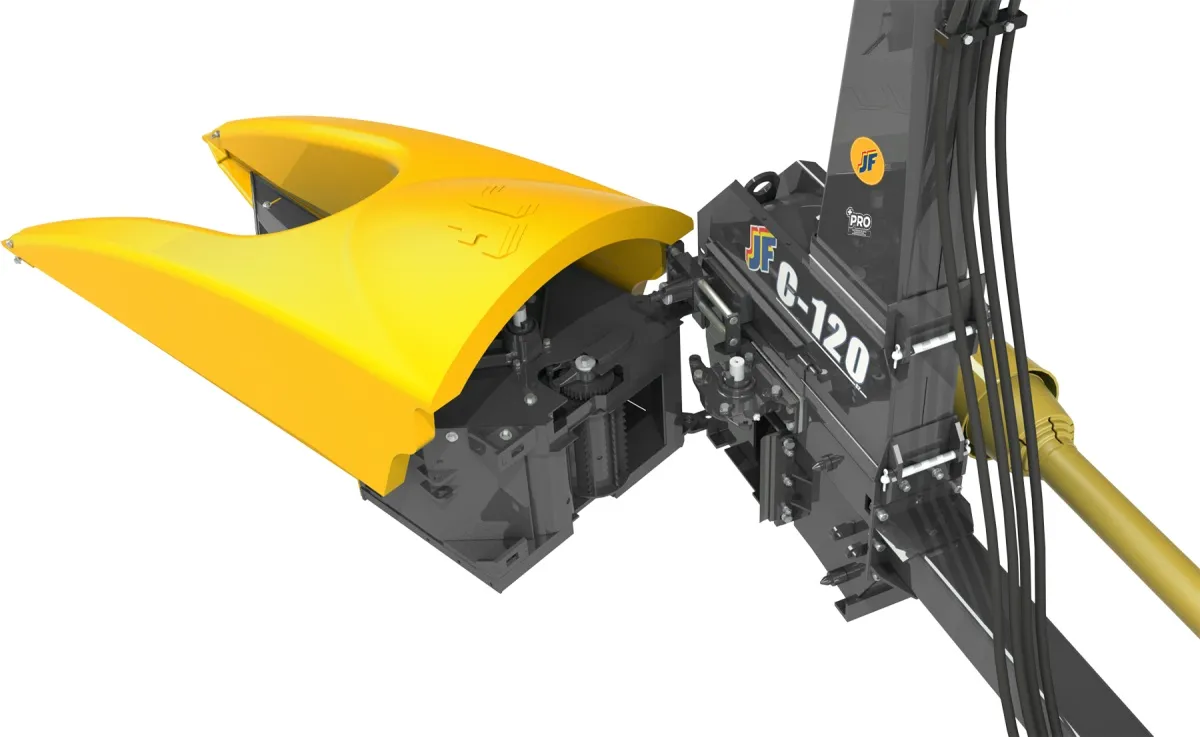

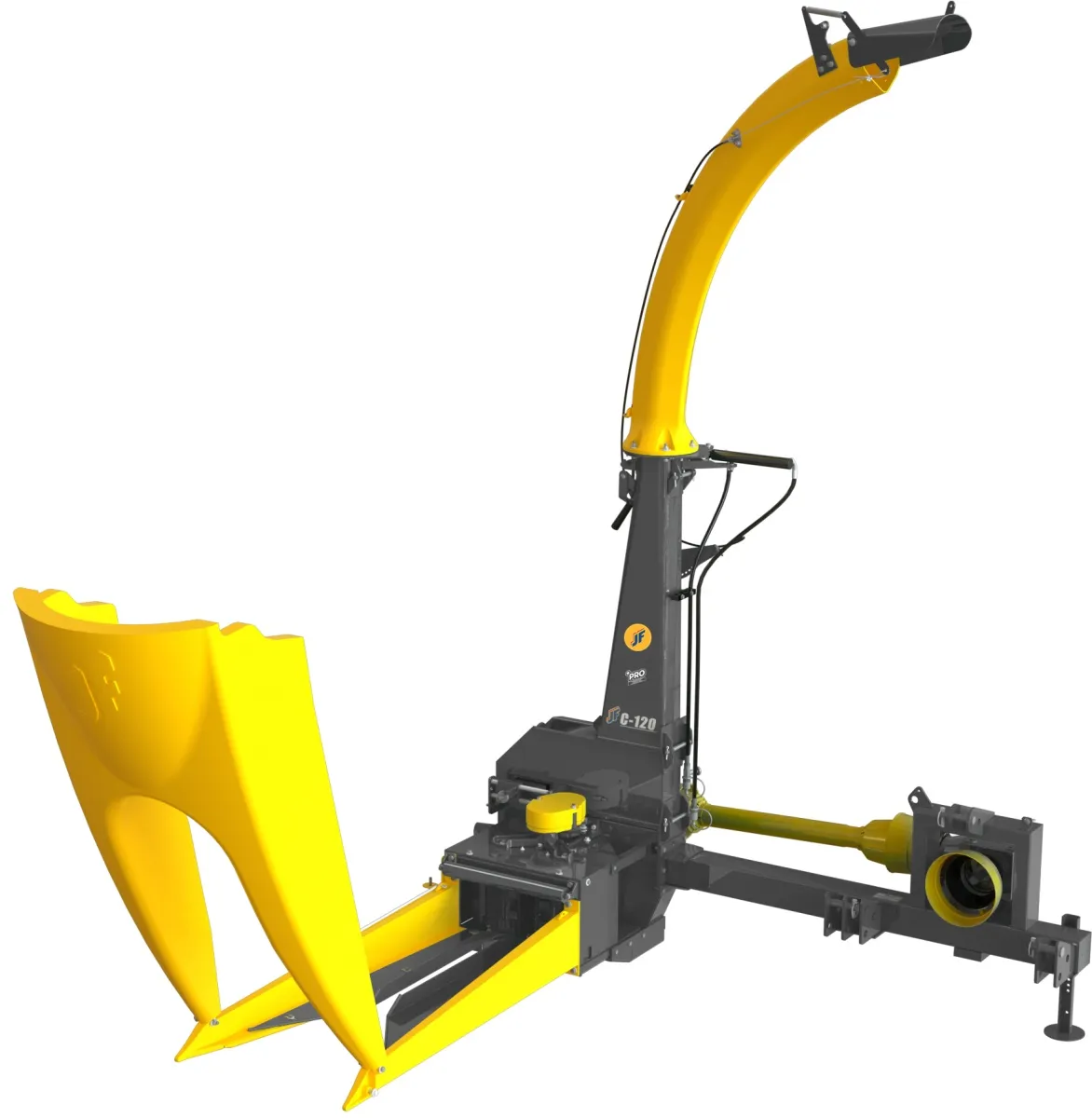

Machine Gallery
See the machine from different angles.
Machine Details
Technical Information
Total Capacity
Up to 28 ton/h* (varies by config)
Mechanical Cut
24 (2 to 36 mm)
Blade Configuration
12
Drum Count
4
Rotor Tech
1
Power Unit
Tractor PTO
PTO Required
50 to 80 hp (varies)
PTO RPM
540 RPM
Transmission
gearbox / cardan (gearbox variant)
Machine Weight
600 kg
Cut sizes
Up to 24 chop sizes (2–36 mm)
Blades
Patented C-technology blades
Capacity
~28 ton/h (model dependent)
